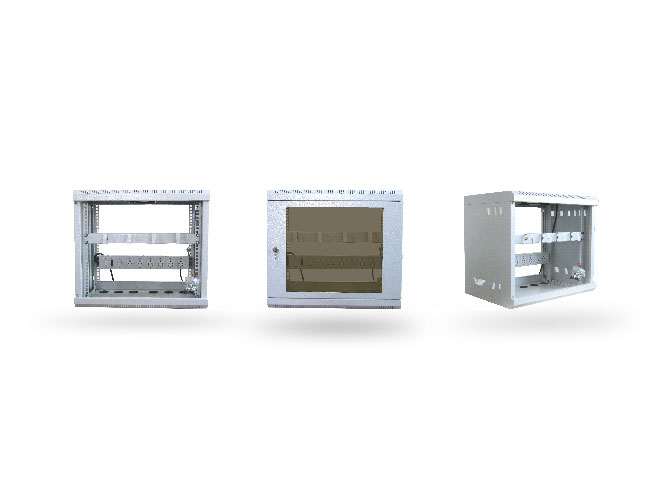

JTI 600 W x 500 D Wall Mount

	These wall mount racks are designed for small networking, telecom, audio/vide systems and structured cabling needs, which are available in single section.Manufactured out of multi-bend one piece rigid CRCA sheet structure, welded and powder coated with highest quality standards. The wall mount rack structure is a welded frame with integrated side panels, vented top cover with fan mounting provision along with front glass door with lock and key provision.
Available from 4U to 15U sizes with depth of 400 and 500.
Key Features   Basic steel frame Construction welded Top cover with fan and bottom cover having cable entry provision Front toughened glass door lockable Adjustable 19” mounting angles in the front and rear Standard finish powder coated Load rating 40 kg
Sizes   Height : 6U, 9U, 12U and 15U Width x Depth: 550 mm x 400 mm (optional) Width x depth: 550 mm x 500 mm (optional) Width x Depth: 600 mm x 500 mm
Material and Finish   Steel wall mount rack powder coated Light Grey (RAL 7035) or Black (RAL 9003) Steel glass door frame powder coated Light Grey (RAL 7035) or Black (RAL 9003)
Rack Accessories   19" 1U Cantilever shelf 275 mm 19" 2U Cantilever shelf 400 mm Cooling 90 CFM fans 19" Cable manager with loops Power Distribution Units (PDUs) Captive mounting hardware Earthling kit
1U = 44.45 mm

Note : Other models can be manufactured on request
The dimensions may vary with the changes in rack design

Wall Mount Rack W 600 mm x D 500 mm - Dimension Matrix Single section model matrix dimensionSingle section model matrix imensionSingle section model matrix dimension
JTI WM-600 Series)	Overall height	Usable height	Overall width	Usable width	Overall depth	Usable depth
6U / 600 X 500	358.70	266.70	600	450	500	405
9U / 600 X 500	492.05	400.05	600	450	500	405
12U / 600 X 500	625.40	533.40	600	450	500	405
15U / 600 X 500	758.75	666.75	600	450	500	405
