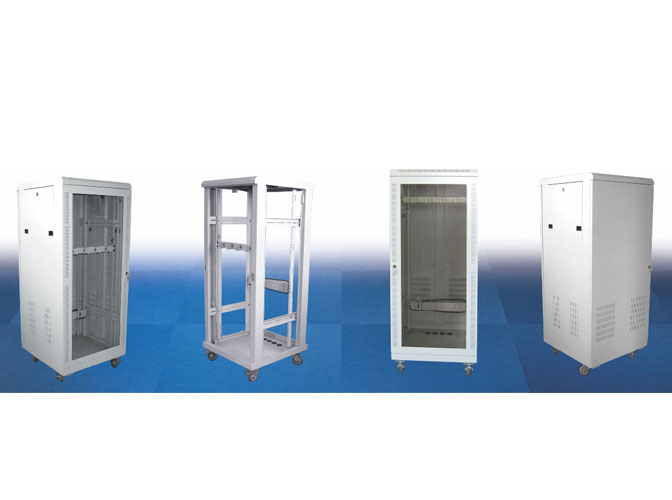

JTI 600 W Steel Pro Rack

	JTI Steel Pro Rack offers cost effective solution to the customer, mainly used for mounting servers and network equipments of different form factors. These racks are made of high quality steel designed to be used for small offices.The tower type equipments can also be accommodated using stationary shelves. These racks have a heavy-duty steel construction with ventilated front and back door and side panels.
Key Features Welded steel frame with integrated top and bottom Standard 19" Rack Front vented doors with tinted toughened glass or fully perforated steel Rear steel door with standard perforation Vented Top cover with cooling fan Cable entry provision from top and bottom Side panels with slam latches and vents at the bottom Adjustable 19” mounting angles at front and rear Load rating 350 kg to 500 kg
Sizes Height :  17U, 22U and 27U Width  :  600 mm Depth  :  600 mm, 800 mm, 1000 mm
Material and Finish  Steel rack powder coated Light Grey (RAL 7035) or Black (RAL 9003) Front glass door frame and rear steel door are powder coated in Light Grey (RAL 7035) or Black (RAL 9003)
Optional Accessories  19” 1U Cantilever shelf 275 mm 19” 2U Cantilever shelf 400 mm Cooling 90 CFM fan 375 mm depth vented shelf 450 mm depth vented shelf 700 mm depth vented shelf Sliding vented shelf Equipment support angles 19” 1U blank panel 19” 2U blank panel 19” 1U cable manager with loops Power Distribution Units (PDUs) Digital lock (optional) Earthing kit Castors with brake and without brake Captive mounting hardware
Steel Pro Rack Model Matrix Dimension 1U = 44.45 mm

Note : Other models can be manufactured on request
&The dimensions may vary with the changes in rack design


JTI Steel Pro Rack 600W
JTI (600MS Pro Rack Series)	Overall height	Usable height	Overall width	Usable width	Overall depth	Usable depth
17U/600/600	859.65	755.65	600	450	600	505
17U/600/800	859.65	755.65	600	450	800	705
17U/600/1000	859.65	755.65	600	450	1000	905
22U /600/600	1081.90	977.90	600	450	600	505
22U /600/800	1081.90	977.90	600	450	800	705
22U /600/1000	1081.90	977.90	600	450	1000	905
27U /600/600	1304.15	1200.15	600	450	600	505
27U /600/800	1304.15	1200.15	600	450	800	705
27U /600/1000	1304.15	1200.15	600	450	1000	905
